Ansible 설치
# 최신 패키지 업데이트
sudo yum update -y
# Python 및 pip 설치
sudo yum install -y python3 python3-pip
# Ansible 설치
sudo pip3 install ansible
yml 작성
- name: Install and configure Zabbix server with Docker
hosts: localhost
connection: local
become: yes
vars:
db_name: zabbix
db_user: zabbix_user
db_password: soobeen0624!
mysql_root_password: rootpassword
zabbix_server_version: "alpine-6.4-latest"
zabbix_web_version: "alpine-6.4-latest"
zabbix_agent_version: "latest"
mysql_version: "8.0"
timezone: "Asia/Seoul"
zabbix_network: "zabbix-network"
tasks:
- name: Create Docker network for Zabbix
docker_network:
name: "{{ zabbix_network }}"
- name: Install Docker and Docker SDK for Python
package:
name:
- docker
- python3-pip
state: present
- name: Install Docker Python SDK
pip:
name: docker
state: present
- name: Start and enable Docker service
service:
name: docker
state: started
enabled: yes
- name: Run MySQL container
community.docker.docker_container:
name: mysql-server
image: mysql:{{ mysql_version }}
env:
MYSQL_ROOT_PASSWORD: "{{ mysql_root_password }}"
MYSQL_DATABASE: "{{ db_name }}"
MYSQL_USER: "{{ db_user }}"
MYSQL_PASSWORD: "{{ db_password }}"
command: >
--character-set-server=utf8mb4
--collation-server=utf8mb4_bin
--default-authentication-plugin=caching_sha2_password
--log-bin-trust-function-creators=1
volumes:
- /var/run/mysqld:/var/run/mysqld
state: started
privileged: true
1,1 Top
state: started
privileged: true
restart_policy: always
published_ports:
- "3306:3306"
networks:
- name: "{{ zabbix_network }}"
- name: Wait for MySQL to be ready
wait_for:
host: "127.0.0.1"
port: 3306
delay: 10
timeout: 60
delegate_to: localhost
- name: Insert initial data into Zabbix users table
shell: |
docker exec -i mysql-server mysql --user=root --password={{ mysql_root_password }} -e "
USE {{ db_name }};
INSERT INTO users (userid, username, name, surname, passwd, lang, theme, autologout, refresh, rows_per_page, roleid, attempt_failed, attempt_clock, timezone) VALUES (1, 'Admin', 'Administrator', 'User', MD5('zabbix'), 'ko_KR', 'default', '15m', '30s', 50, 1, 0, 0, 'default');"
args:
executable: /bin/bash
ignore_errors: yes
- name: Run Zabbix Server container
docker_container:
name: zabbix-server
image: zabbix/zabbix-server-mysql:{{ zabbix_server_version }}
env:
DB_SERVER_HOST: mysql-server
MYSQL_DATABASE: "{{ db_name }}"
MYSQL_USER: "{{ db_user }}"
MYSQL_PASSWORD: "{{ db_password }}"
TZ: "{{ timezone }}"
state: started
privileged: true
restart_policy: always
networks:
- name: "{{ zabbix_network }}"
published_ports:
- "10051:10051"
- name: Run Zabbix Web container
docker_container:
name: zabbix-web
image: zabbix/zabbix-web-nginx-mysql:{{ zabbix_web_version }}
env:
ZBX_SERVER_HOST: zabbix-server
DB_SERVER_HOST: mysql-server
MYSQL_DATABASE: "{{ db_name }}"
MYSQL_USER: "{{ db_user }}"
MYSQL_PASSWORD: "{{ db_password }}"
PHP_TZ: "{{ timezone }}"
state: started
restart_policy: always
61,9 42%
state: started
restart_policy: always
networks:
- name: "{{ zabbix_network }}"
published_ports:
- "8080:8080"
- "8443:8443"
- name: Run Zabbix Agent container
docker_container:
name: zabbix-agent
image: zabbix/zabbix-agent2:{{ zabbix_agent_version }}
env:
ZBX_SERVER_HOST: zabbix-server
ZBX_HOSTNAME: soobeen
state: started
restart_policy: always
networks:
- name: "{{ zabbix_network }}"
published_ports:
- "10050:10050"
volumes:
- "/var/run/docker.sock:/var/run/docker.sock"
privileged: true
- name: Get Zabbix Agent Docker IP
command: docker inspect -f "{% raw %}{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}{% endraw %}" zabbix-agent
register: zabbix_agent_ip
- name: Get Mysql Docker IP
command: docker inspect -f "{% raw %}{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}{% endraw %}" mysql-server
register: mysql_ip
- name: Set credentials to access Zabbix Server API, Create Host
ansible.builtin.set_fact:
ansible_user: Admin
ansible_httpapi_pass: zabbix
- name: Create a new host or update it
vars:
ansible_network_os: community.zabbix.zabbix
ansible_connection: ansible.netcommon.httpapi
ansible_httpapi_port: 8080
ansible_httpapi_use_ssl: false
ansible_httpapi_validate_certs: false
ansible_zabbix_url_path: ""
become: false
community.zabbix.zabbix_host:
host_name: soobeen
host_groups:
- Zabbix servers
link_templates:
- Docker by Zabbix agent 2
- MySQL by Zabbix agent 2
- Linux by Zabbix agent
interfaces:
- type: 1
115,11 85%
- name: "{{ zabbix_network }}"
published_ports:
- "10050:10050"
volumes:
- "/var/run/docker.sock:/var/run/docker.sock"
privileged: true
- name: Get Zabbix Agent Docker IP
command: docker inspect -f "{% raw %}{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}{% endraw %}" zabbix-agent
register: zabbix_agent_ip
- name: Get Mysql Docker IP
command: docker inspect -f "{% raw %}{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}{% endraw %}" mysql-server
register: mysql_ip
- name: Set credentials to access Zabbix Server API, Create Host
ansible.builtin.set_fact:
ansible_user: Admin
ansible_httpapi_pass: zabbix
- name: Create a new host or update it
vars:
ansible_network_os: community.zabbix.zabbix
ansible_connection: ansible.netcommon.httpapi
ansible_httpapi_port: 8080
ansible_httpapi_use_ssl: false
ansible_httpapi_validate_certs: false
ansible_zabbix_url_path: ""
become: false
community.zabbix.zabbix_host:
host_name: soobeen
host_groups:
- Zabbix servers
link_templates:
- Docker by Zabbix agent 2
- MySQL by Zabbix agent 2
- Linux by Zabbix agent
interfaces:
- type: 1
main: 1
useip: 1
ip: "{{ zabbix_agent_ip.stdout }}"
dns: ""
port: 10050
macros:
- macro: "{$MYSQL.USER}"
value: "{{ db_user }}"
- macro: "{$MYSQL.PASSWORD}"
value: "{{ db_password }}"
- macro: "{$MYSQL.DSN}"
value: "tcp://{{ mysql_ip.stdout }}:3306"
- name: Display completion message
debug:
msg: >
Zabbix Server is now running in Docker containers.
Access Zabbix Web Interface at http://{{ansible_default_ipv4}}:8080
MySQL database container is running with user '{{ db_user }}'.
- 위 명령어를 통해 yml 파일 기반으로 자동으로 설치
- WEB, MYSQL, Zabbix-Server, Agent 모두 설치된것을 확인 할 수 있다

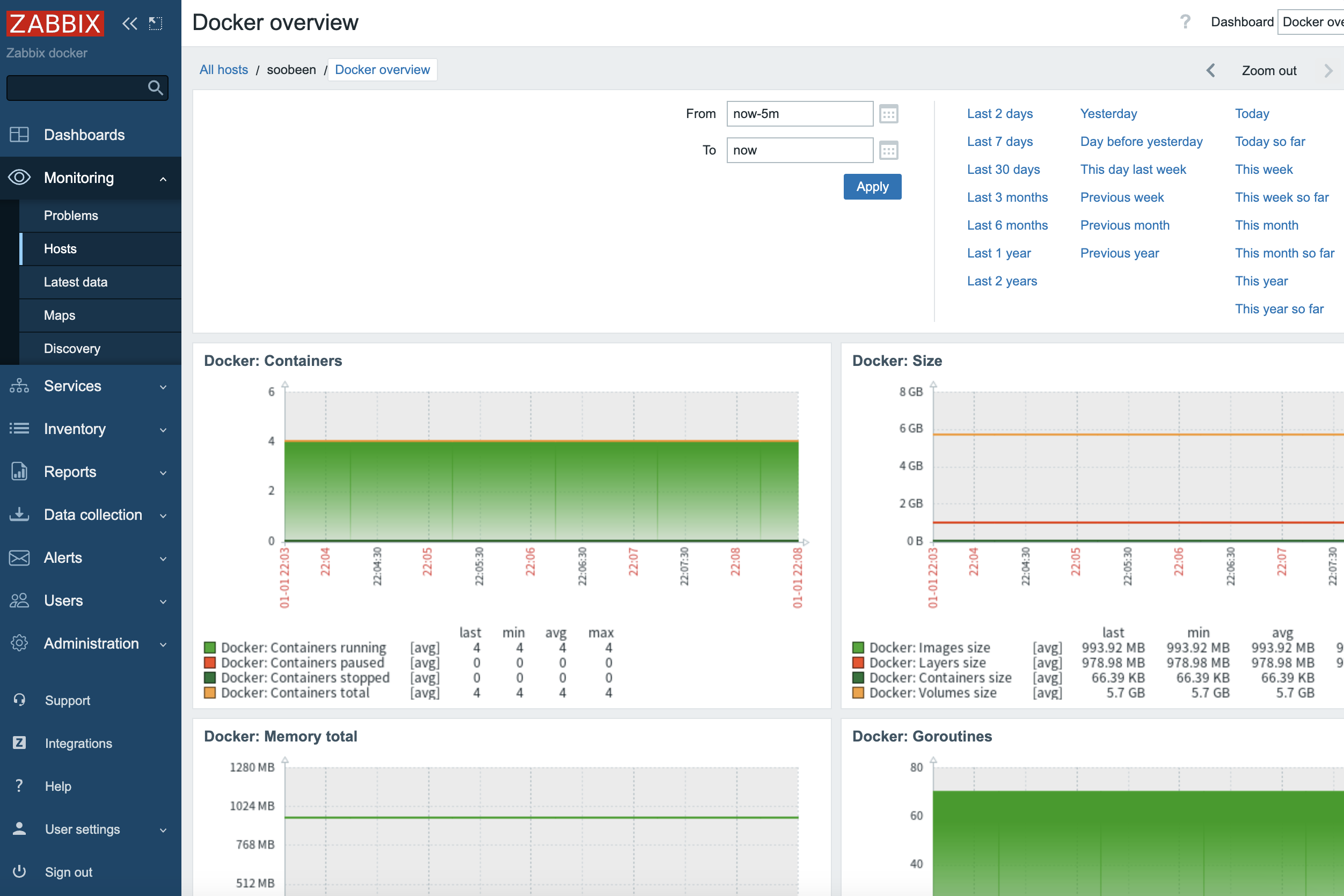

- 확인이 완료되면 해당 아이피의 8080포트로 아래와 같은 페이지로 접근 가능한것을 확인 할 수 있다
